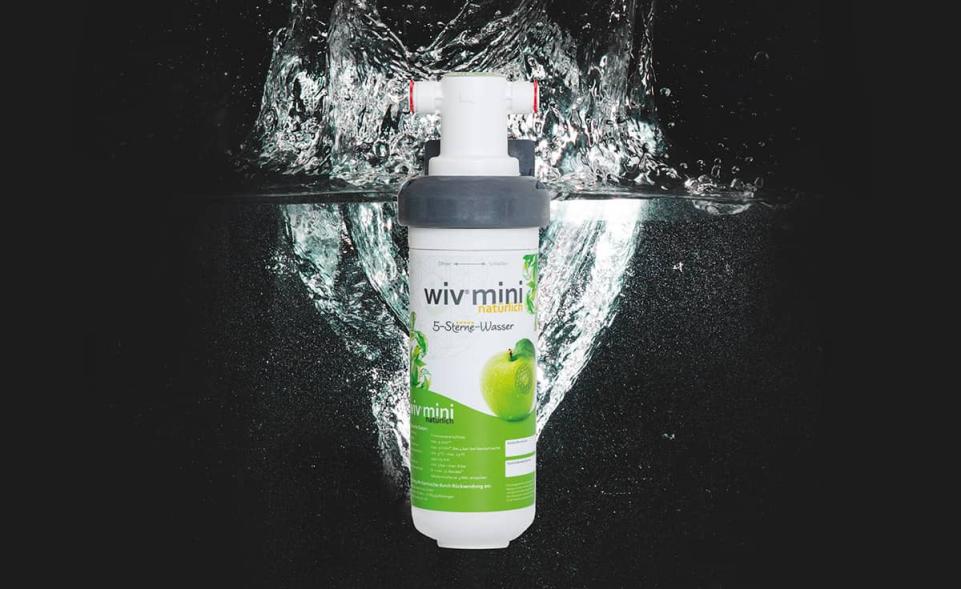

WIV® MINI DEPTH FILTER

  • Filter with coconut membrane
  • Any harmful substances (e.g. medication residue, hormones, heavy metals) can be absorbed
  • The mineral content of the drinking water is not altered
  • Ideal for combining with 3Quellen® water activation
  • Decentralised connection to the drinking water point (e.g. kitchen angle valve)
  • For self-assembly in any installation position. Ready for installation with connection set
  • Install in the direction of flow, after the water activation
  • Screw cap makes changing the filter easy
  • Made in Germany

Technical data

  • Component testing: WRAS valid until 4 / 2023
  • Operating pressure: min. 3 bar – max. 6 bar
  • Water temperature: 5 – 23 °C
  • Capacity: approx. 5,000 l* / max. 12 months
  • Volumetric flow rate: max. 5 l/min* with a new cartridge
  • Use: drinking water
  • Manufacturer: BBB Gebäudetechnik GmbH
  • Connection: 3/8 inch external thread
  • Pressure reduction: approx. 0.3 bar*
  • All components correspond to generally recognised codes of practice
  • The device meets the requirements of § 17(1) of the German drinking water regulation (Trinkwasser Verordnung)

*The performance specified depends on water quality and water pressure in your area. Capacity may vary.

Please note:

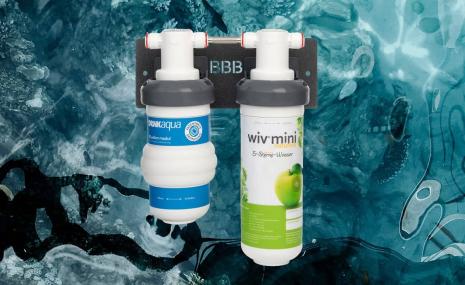

If you want to use a 3Quellen S device in combination with a filter, you should install them at the same time. Feed the connecting pipes into the 3Quellen S device first and then into the filter. After installation, it is no longer possible to remove the self-locking connecting pipes. Otherwise the connection points and the connecting pipes will have to be exchanged in order to be able to subsequently connect both devices together.

Article WiVM
Length 10 cm
Width 10 cm
Height 29 cm
Weight 800 g
Scope of delivery

WiV® Mini Tiefenfilter, Anschluss-Set
